Structural Wall Repair Bayswater

Structural wall issues can develop gradually. However, when left unattended, they may compromise the safety and value of a home. Recently, we completed a structural wall repair in Bayswater after a significant lean and bow were identified during an inspection.

Identifying the Structural Problem

The external masonry wall had noticeably bowed outward. In addition, vertical cracking was visible along several mortar joints. Using a straight edge and level measurements, we confirmed that the deviation exceeded acceptable tolerances under Australian construction standards.

Walls should remain plumb within allowable limits. In this case, the lean was beyond the tolerances outlined in the WA Guide to Standards and Tolerances. The outward movement indicated structural instability rather than cosmetic cracking.

Importantly, the bowing was not isolated to surface brickwork. The structural integrity of the wall system had been compromised. Over time, foundation movement and inadequate lateral restraint likely contributed to the failure. For long-term stability and compliance, we recommend engaging professionals experienced in structural building repairs in Perth to properly assess and rectify wall movement issues.

Why Structural Wall Movement Occurs

There are several reasons why a wall may begin to lean or bow. Common causes include:

• Reactive soil movement

• Inadequate footing depth

• Poor wall tie installation

• Long-term moisture ingress

• Age-related material fatigue

In this Bayswater property, the footing had experienced minor settlement. As a result, the load path shifted, placing additional stress on the wall. Consequently, the wall progressively moved out of alignment.

Once structural deviation exceeds allowable limits, repair is no longer optional. It becomes necessary to prevent further movement or collapse.

The Structural Wall Repair Process

After confirming the severity of the lean, we advised a full wall rebuild. Although partial patching may seem cheaper, it would not have restored structural compliance.

First, the affected wall section was carefully demolished. We then assessed the footing system to determine whether reinforcement was required. Fortunately, the footing remained serviceable with minor strengthening works.

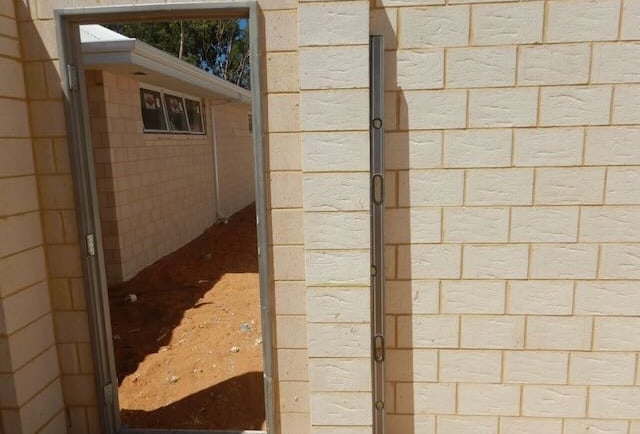

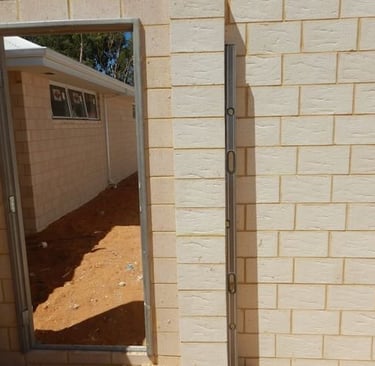

Next, we reconstructed the wall using compliant masonry techniques. New wall ties were installed to ensure proper lateral support. In addition, we confirmed vertical alignment throughout the rebuild process.

Finally, the wall was checked for plumb, level and structural stability. The finished result met current standards and restored the structural soundness of the home.

Why Professional Structural Repairs Matter

Structural wall defects should never be dismissed as cosmetic issues. Even small deviations can worsen over time. Therefore, engaging a registered builder ensures that repairs address the root cause rather than just visible symptoms.

At Perth Master Building Services, we specialise in structural repairs identified during building inspections. Whether movement results from soil conditions, ageing materials or design limitations, we provide compliant solutions that prioritise long-term stability.

If you have concerns about leaning walls or cracking brickwork, early assessment is critical. Acting promptly can prevent larger and more expensive repairs in the future.

Structural Wall Repair Bayswater – FAQs

What causes a structural wall to bow or lean?

A structural wall may bow or lean due to footing movement, reactive soils, poor drainage or inadequate wall ties. Over time, these factors can shift the load path and cause the wall to move beyond acceptable tolerances.

How do I know if wall movement is structural?

Structural movement usually exceeds the allowable limits outlined in the WA Guide to Standards and Tolerances. Signs include visible leaning, horizontal cracking, stepped brick cracks or gaps forming at junctions. A qualified builder should assess the deviation to confirm compliance.

Can a bowed wall be repaired without rebuilding?

Minor cosmetic cracking can sometimes be repaired. However, when a wall is significantly leaning or structurally compromised, rebuilding is often the safest and most compliant solution. Patching alone will not restore structural integrity.

Is structural wall repair covered by insurance?

Insurance coverage depends on the cause of the movement. Sudden damage from an insured event may be covered. However, gradual movement due to soil conditions or age is often excluded. It is important to check your policy.

How long does structural wall repair take?

The timeframe depends on the extent of demolition and rebuilding required. Most residential wall rebuilds can be completed within several days, provided no major footing replacement is needed.

What is a structural wall defect?

A structural wall defect occurs when movement exceeds allowable tolerances, compromising load-bearing capacity.
