Roof Strut Repairs

During a recent roof repair project in Dianella, several structural roof framing defects were identified following recommendations contained within an earlier building inspection report.

The inspection identified that numerous timber roof struts had been installed directly onto steel I-beams without adequate support or restraint fixings. While the roof structure remained generally stable, the installation methods did not comply with recommended structural fixing practices and required rectification works.

At Perth Master Building Services, we regularly complete roof strut repairs throughout Perth where structural defects have been identified within existing roof framing systems.

Many structural roof defects remain hidden within roof spaces for years before becoming noticeable through cracking, movement or ceiling distortion.

What Are Roof Struts?

Roof struts are structural timber members used to transfer roof loads safely down onto supporting walls or beams.

They play an important role in stabilising roof framing and preventing movement within the roof structure.

If roof struts are incorrectly installed, unsupported or inadequately fixed, movement may eventually occur within the roof frame.

This can contribute to:

• Ceiling cracking

• Sagging roof lines

• Cornice separation

• Wall cracking

• Roof movement

• Structural instability

Correct installation methods are essential to ensure structural loads are distributed safely.

Roof Strut Defects Identified

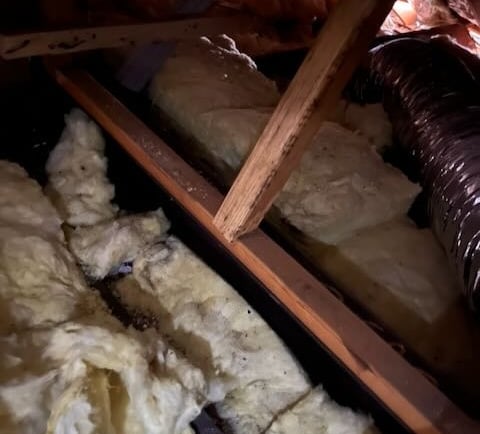

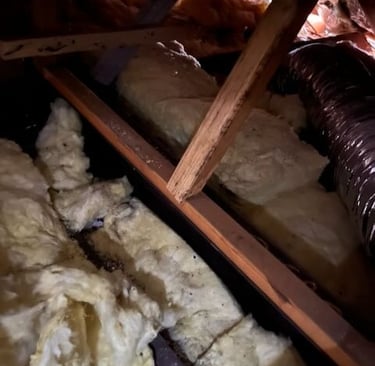

The Dianella property contained several defective roof strut installations.

The original building report identified that multiple timber struts had been positioned directly onto steel I-beams without adequate sole plates beneath them.

Several roof struts also lacked adequate restraint fixings to prevent movement.

The following issues were identified:

• Roof struts bearing directly onto steel beams

• Missing sole plates

• Inadequate restraint connections

• Insufficient structural fixing methods

• Concentrated point loading onto steel beams

While no major structural collapse risk was identified at the time of repair, rectification works were recommended to improve structural performance and long-term stability.

Roof Strut Repairs Completed

Our builders completed several structural reinforcement repairs within the roof space.

These roof strut repairs were designed to improve structural load distribution and secure the affected framing members.

Sole Plate Installation

New timber sole plates were installed beneath the affected roof struts.

Sole plates help distribute structural loads evenly across supporting members rather than concentrating loads onto small sections of steel beams.

This helps reduce the risk of localised movement and improves long-term structural performance.

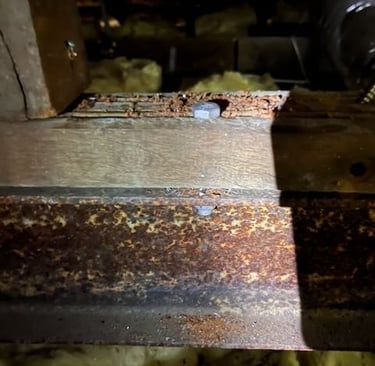

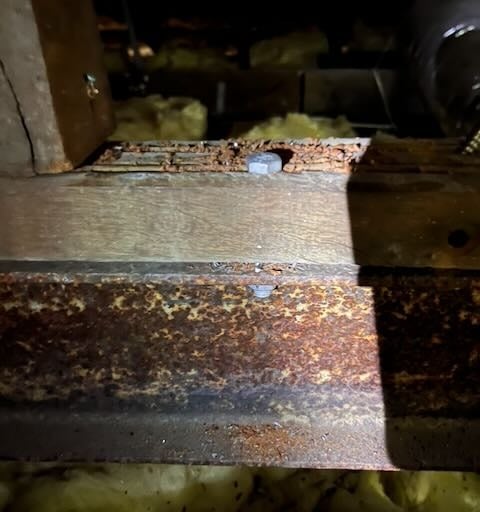

The sole plates were mechanically fixed and bolted through the steel I-beams in accordance with applicable Australian Standards fixing requirements.

Structural Bolt Installation

Structural bolts were installed through the steel I-beams and sole plates to provide improved restraint and stability.

Correct fixing methods are critical during roof strut repairs as inadequate connections may allow future movement within the roof framing system.

All structural fixings were installed to improve the performance of the existing roof structure.

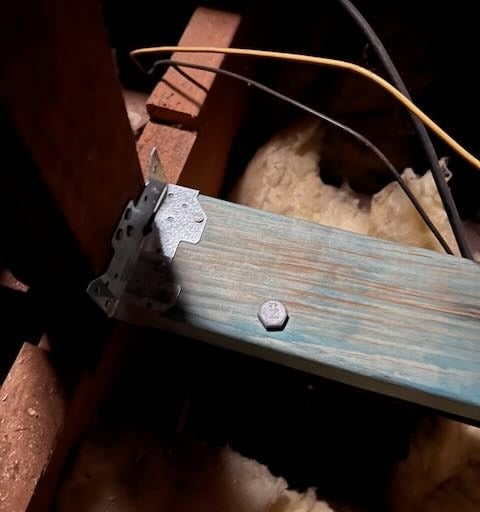

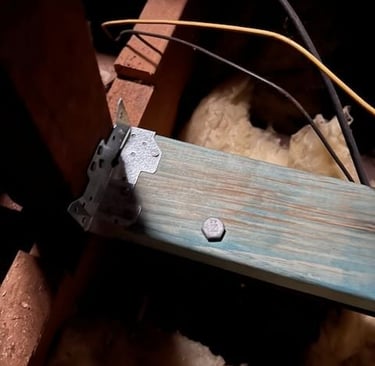

Triple Grip Installation

Several roof struts lacked adequate tie-down restraint fixings.

Triple grips were installed to secure the struts and improve the structural connection between framing members.

Triple grips assist in reducing movement and help stabilise roof framing systems subjected to long-term structural loading.

Why Roof Strut Repairs Matter

Many Perth homes contain older roof framing systems that have been altered, repaired or modified over time.

In many cases, structural defects remain hidden within the roof space until cracking or movement becomes visible internally.

Roof strut repairs are important because defective structural supports may eventually contribute to ongoing movement throughout the home.

Common signs of roof framing movement include:

• Cracking to ceilings

• Wall cracking

• Cornice separation

• Roof sagging

• Uneven roof lines

• Internal movement damage

Early repairs may help prevent more expensive structural problems later.

Common Roof Framing Problems Found in Perth Homes

At PMBS, we regularly identify the following structural roof defects during inspections and repair projects:

• Defective roof struts

• Sagging roof framing

• Inadequate beam supports

• Missing tie-downs

• Incorrect structural modifications

• Defective timber bracing

• Roof spread

• Poorly installed framing connectors

• Inadequate load distribution

• DIY roof framing alterations

Many of these problems can be repaired without requiring full roof replacement.

Qualified Roof Strut Repairs Perth

Structural roof framing repairs should always be completed by experienced and properly qualified builders.

Incorrect structural alterations can worsen movement issues or create additional load path problems within the roof structure.

At Perth Master Building Services, we provide roof strut repairs and structural framing reinforcement throughout Perth.

We regularly complete repairs following recommendations identified during pre-purchase building inspections and structural defect assessments.

Structural roof strut repairs with bolted sole plate installation to steel I-beam
